Freemotion

e10.9b Total Body Elliptical - FMEL84418

Sale price Price SFr. 10,200.00 Regular price Unit price per

Tax included. Shipping calculated at checkout.

Low impact, all adventure. The e10.9b Elliptical comes with a simplified console that can be upgraded with the addition of a smart device. Sync the iFit-compatible machine with a smart device and the elliptical will match the resistance to recreate the actual route on the screen. The elliptical's foot placement makes the run, walk or ski easier on the knees, joints and back.

PRODUCT INFORMATION SHEET

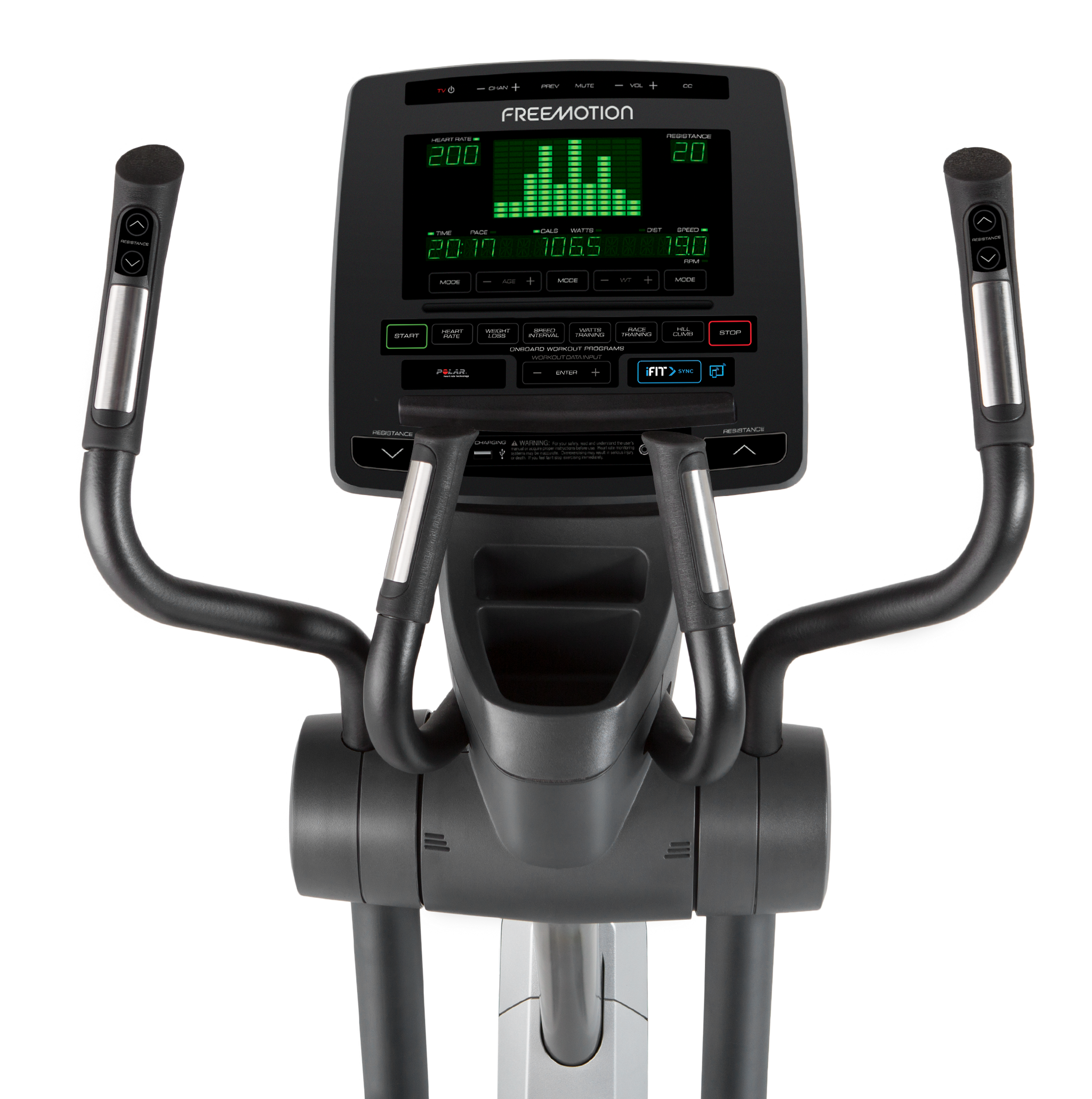

SIMPLIFIED USER INTERFACE

Get all the workout information you need in one place. Easy-to-read results lets you know what you've accomplished during the workout.

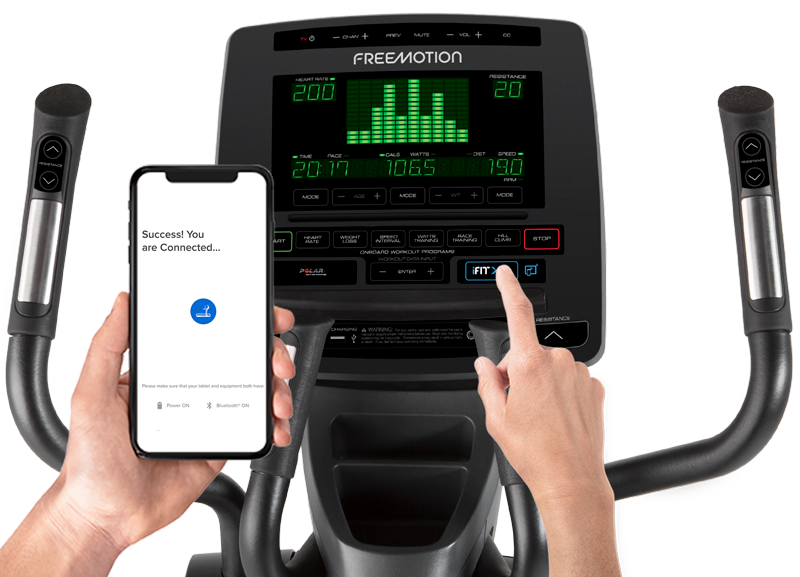

IFIT® SYNC

The console of the e10.9b Elliptical goes from simple to interactive when synced with a smart device. As the industry's first "Bring Your Own Device"-solution, the elliptical has resistance matching technology to recreate the actual terrain of video workouts filmed around the world.

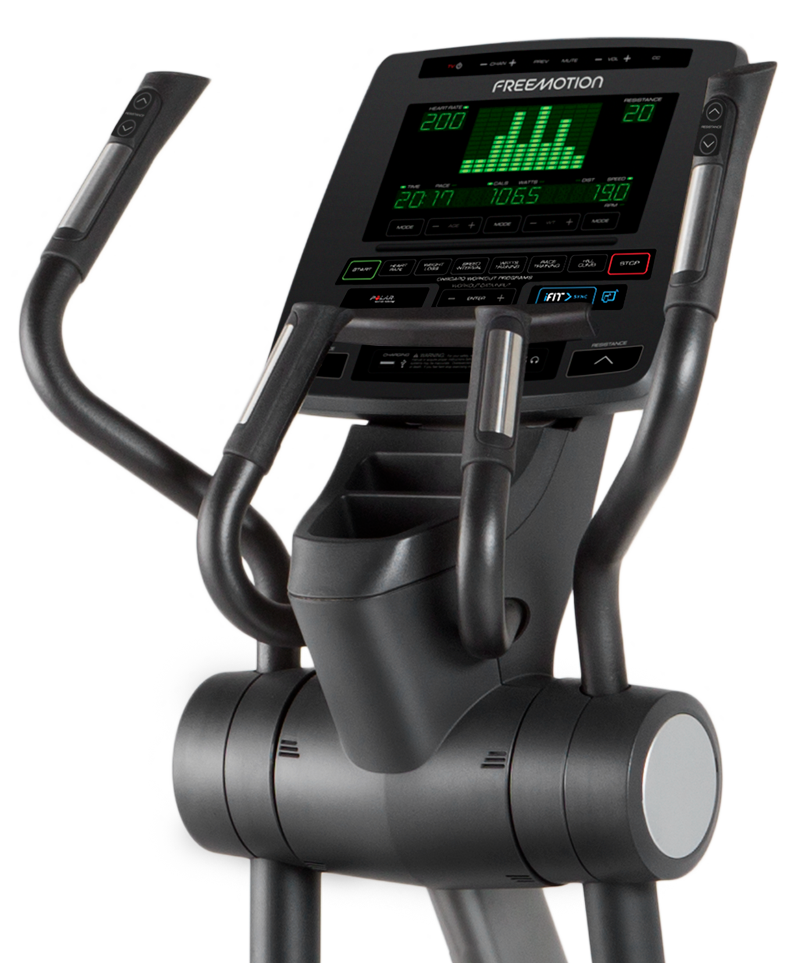

UPPER-BODY WORKOUT ARMS WITH SOFT GRIPS

Get a total-body, low-impact workout with upper-body workout arms. Elliptical training engages the entire body, burns more calories and tones more muscle for faster results.

EQUIPMENT FEATURES

Accessories Holder(s): Water bottle holder

Resistance System: 400 Watt self-generator resistance system

Drive System: Quiet Belt Drive System, Hutchinson J10 Space-efficient rear drive

Grips: Soft touch upper body grips

Gear Ratio: 8.85:1

Stride Length (in/cm): 20 in (50.8 cm) stride length

Transport Wheels: 3.3 in (8.38 cm) plastic wheels

DRIVE TRAIN

Pulley: 12.2 in (30.9 cm)

Crank Axle: Axle with crank arms

Crank: 2 PC, 20 in (50.8 cm) Stroke

Drive Belt: Quiet Belt Drive System

Pedals: Non-skid, traction control cushion pedals

ENTERTAINMENT

Optional Upgrades:

15.6 in (39 cm) Personal TV with on-console controls (FMTV84414),
900/800 MHz TV receiver (MYE900RCVR)

WiFi Requirements:

10Mpbs per unit download
500Kpbs per unit upload

CSAFE Enabled: Yes

CONSOLE FEATURES

Display Type: Simplified User Interface

Console Language(s): EN, ES, DE, IT, PT, CH, NL, FR

Preset Programs:

8 Weight Loss
8 Speed Interval
3 Race Training
3 Hill Climb
Heart Rate
Watt Training

Number of Programs: 24

Electronic Readouts: Speed, Resistance, RPM, Distance, Calories, Time, Heart Rate, Watts and Pace

Maximum Workout Time: 99:59 (99 Minutes + 59 Seconds)

Maximum Pause Time: 60 Seconds

Controls: Digital resistance control

EQUIPMENT DIMENSIONS & WEIGHT

Machine Weight lbs (kg): 286.4 lbs (130.2 kg)

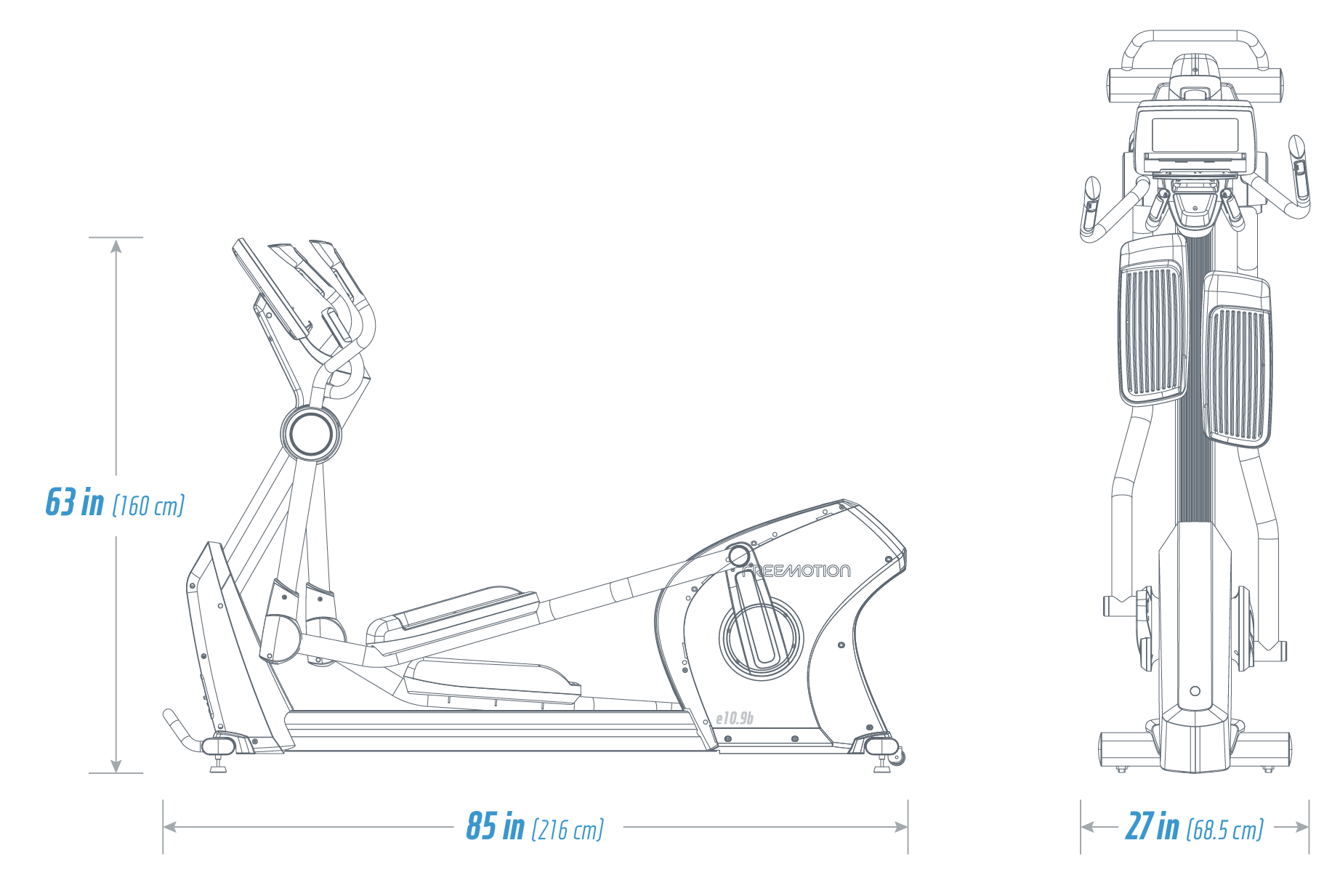

Equipment L x W x H in (cm): 85 x 27 x 63 in (215.9 x 68.5 x 160 cm)

SHIPPING DIMENSIONS & WEIGHT

Shipping Weight lbs (kg): 301.8 lbs (137.2 kg)

Shipping L x W x H in (cm): 91.7 x 32.6 x 25.9 in (232.9 x 82.8 x 65.7 cm)

EQUIPMENT SPECIFICATIONS

Step-up Height in (cm): 9.5 in (24.1 cm)

Maximum User Weight lbs (kg): 400 lbs (182 kgs)

POWER REQUIREMENTS

Input 240 VAC

REGULATORY APPROVALS

Approvals: FCC, BQB

Model number: FMEL84418

PRODUCT INFORMATION SHEET
